හැදින්වීම :

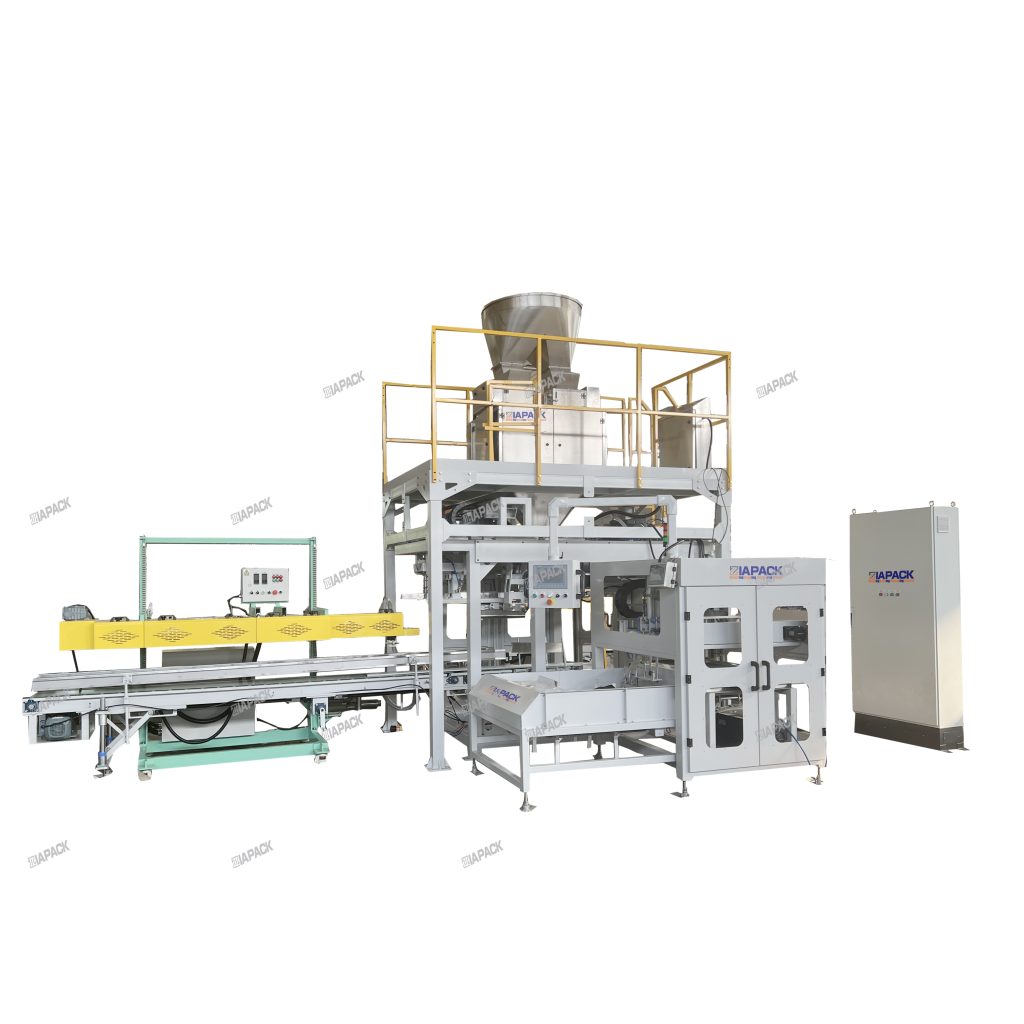

This line is special design for automatic weighing filling bagging of 25kg small granule like rice bean sugar salt plastic granule fertilizer and animal food .According the client requirement we also need offer the automatic weight check ,metal detector and palletizing.The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
ZL25K-S Automatic double buckets gravity scale system
පීrinciple :
This scales are composed of mechanical components and sensors of the weighing system and a weighing control instrument system. The combined cylinder controls the feeding accuracy. Materials are fed from the dividing hopper and enter the feeding mechanism through the flow adjustment valve, and then enter the weighing hopper through the feeding door.
| ආකෘතිය | Net weight sensor type electronic scale (double scale) |
| Feeding method | Gravity blanking (cylinder driven) |
| ද්රව්යය | Material contact surface 304 stainless steel, frame protection 304 stainless steel |
| ගුවන් පරිභෝජනය | ~200NL/min |
| power | ~2.0kw |
| Weighing capacity | ≥600 bags/hour |
| Set weighing value | Net weight 30kg/bag |
| මිනුම් නිරවද්යතාව | ±0.1% |
| load cell | ZEMIC China |

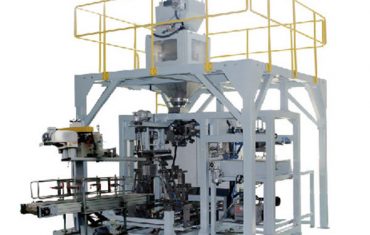

ZL750 Automatic filling bagging packaging machine
මෙම ඒකකය බෑග් ගබඩා බඳුනක්, බෑග් රැගෙන යාමේ සහ වර්ග කිරීමේ උපකරණයක්, බෑග් පැටවීමේ රොබෝවක්, බෑග් කලම්ප කිරීමේ සහ බෑමේ උපකරණයක්, බෑග් තල්ලු කිරීමේ උපකරණයක්, බෑග් මුඛ මාර්ගෝපදේශක උපාංගයක්, රික්ත පද්ධතියක් සහ පාලන පද්ධතියකින් සමන්විත වේ.
